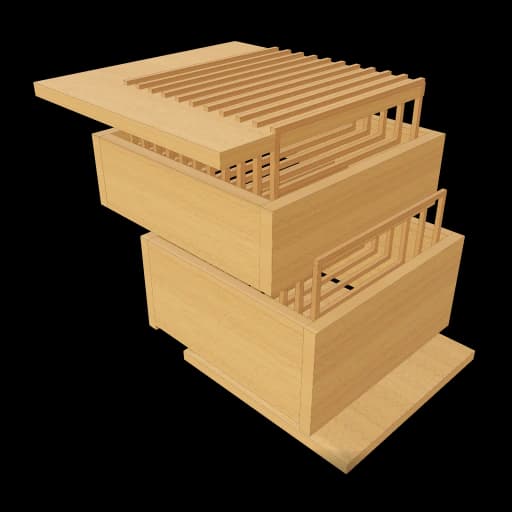

British National · Beesource · bottom-space woodenware

Dimenzije

Podnica: solid. Krov: flat.

Izvori

• Beesource, 2011 — 11-FRAME BRITISH NATIONAL BEEHIVE,2pages; bottom-space section A and construction notes. Pristupljeno 2026-09-08.

  Podupire: 18-1/8 outer body;8-7/8 brood and5-7/8 shallow; 3/4 walls,1-inch cross rails,section A rebates; 18-inch crown board with1/4 each-side space; roof minimum board specifications and18-3/4 inside; 2-inch reversible floor with3/4 plywood and7/8 upper space.

Nepoznanice

Ovo su otvorena pitanja ovog profila. Popis je dio podatka, a ne izostavljen detalj.

• Bee space na svakom sučelju nije definiran (beeSpaceInterfaces: null).
• Proizvodne tolerancije nisu definirane (tolerancesMm: null).
• Spojevi su konceptualni sudarni paneli, neprovjereni (joinery).
• Nosivi utor za okvire nije dimenzioniran (bearingRebate: null).
• Named imperial2011 bottom-space woodenware only, not metric18mm, top-space, Commercial, WBC or Smith
• Frame metadata remains uncited inherited concept data and is not used for frame meshes; source11 count only, no physical frame-fit claim
• Body depth derives from two1-inch rails plus two3/4 panels; corner joints are not machined
• Lower-rail bevel and rebate horizontal extent are undimensioned; full rail envelope shown, only1/4 vertical recess sourced
• End panel top7/16 below body top follows section A; metal runner gauge/curve omitted
• Minimum-spec selection: roof sides1/2, top3/8, crown plywood1/4; allowed source choices, not universal National material specification
• Crown escape holes and roof ventilation holes are recorded but not cut; continuous panels are envelopes, not ready-to-use hardware
• Roof flashing gauge and exact box-joint pitch unspecified; omitted
• Source bottom-space variant only; no top-space conversion, generic bee-space tolerance, CNC or physical acceptance
